PIR Motion Sensor Three Wire
Part number: C-7322
£14.89
PIR Motion Sensor Three Wire — None.
| Brand | COLORS LED |
|---|---|
| Part Number | C-7322 |
| Input voltage | AC220-240V |
| Light Color | None |
| Temperature | -20°C / +40°C |
| Body Color | White |
| Items per pack | 1 |
| Frequency | 50/60Hz |

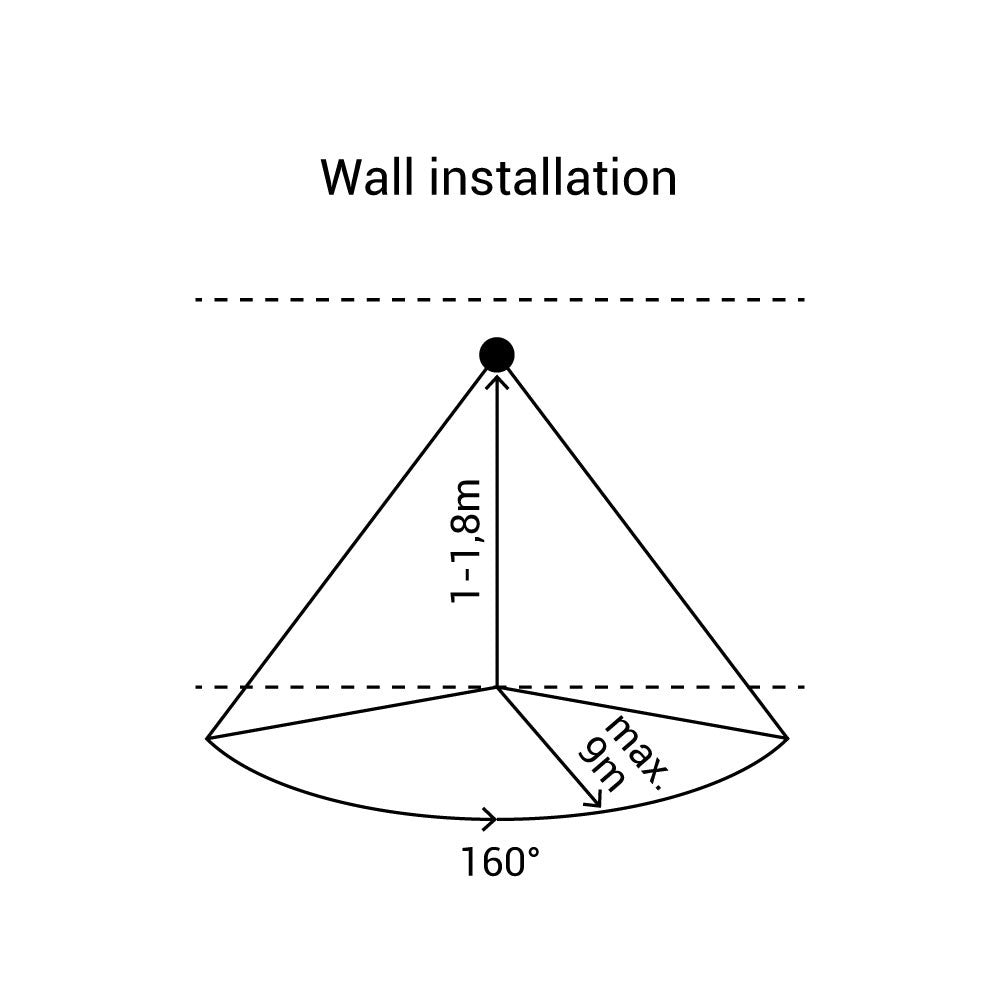

| Range | 160º |
| Time | min 10 sec ± 3 sec - max 7 min ± 2 min |
| Lux | <10/2000LUX (adjustable) |
| Rated voltage | 400W LED |
| Power consumption | approx. 0.5W |
| Detection Distance | 9 m max (<24℃) |
| Installation Height | 1-1.8 m |
| Working Humidity | <93%RH |
| Detection Moving Speed | 0.6-1.5 m/s |

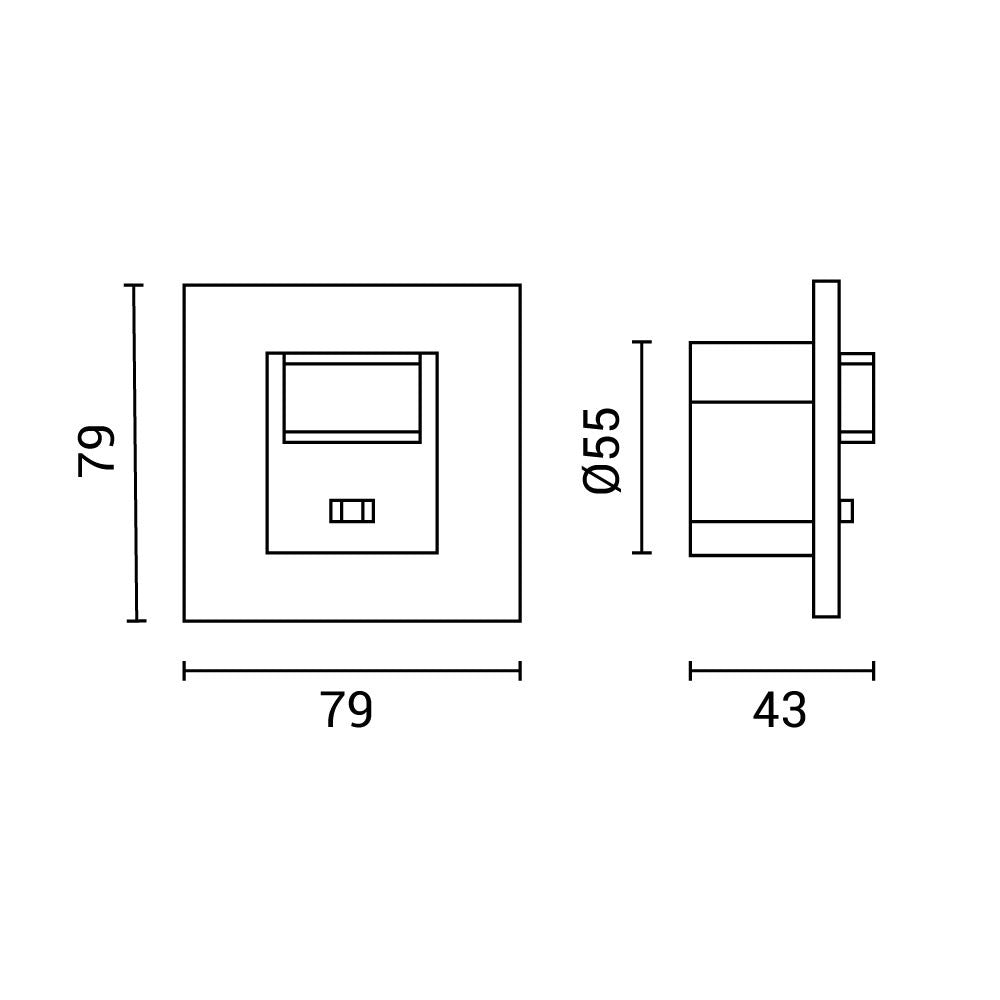

| Dimensions | 79 x 79 x 43mm |
| Gross weight | 0,100 kg |
| Net weight | 0,066 kg |
| Warranty | 2 Years |
Price left at 0.00 — set GBP trade price before publishing.
Part number: C-7322
Download datasheet (PDF)
